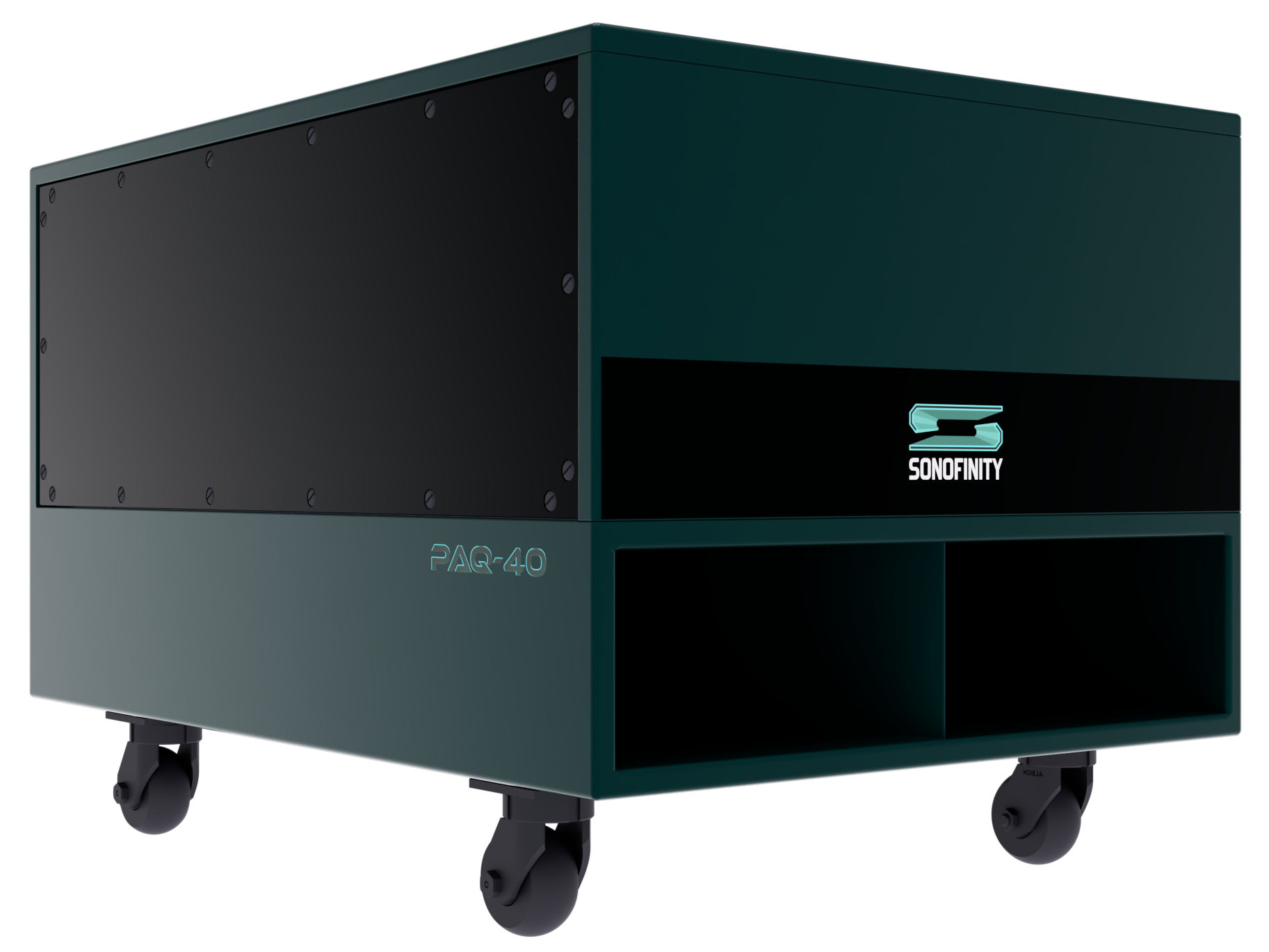

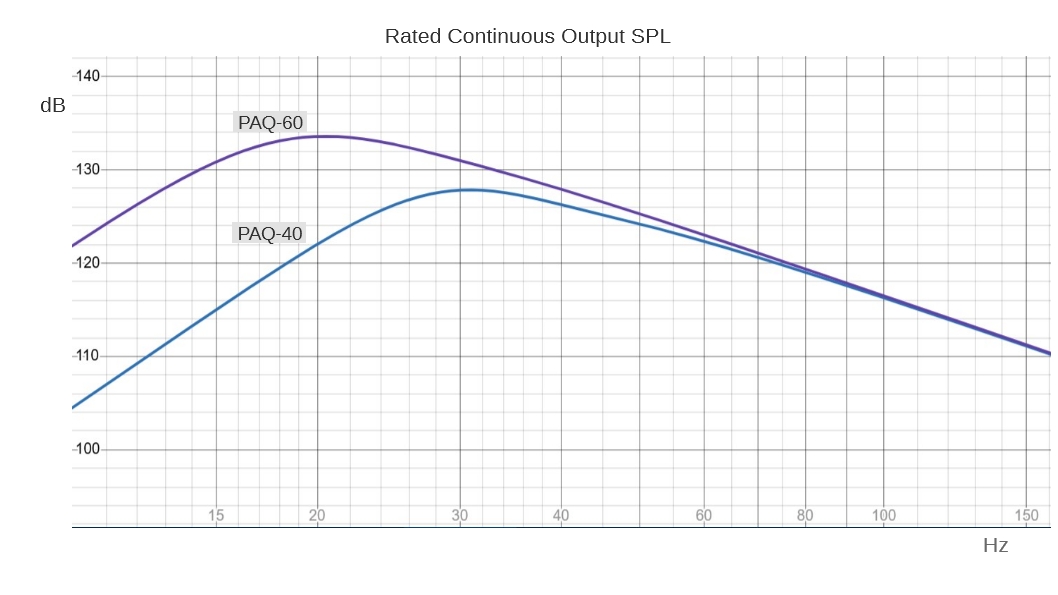

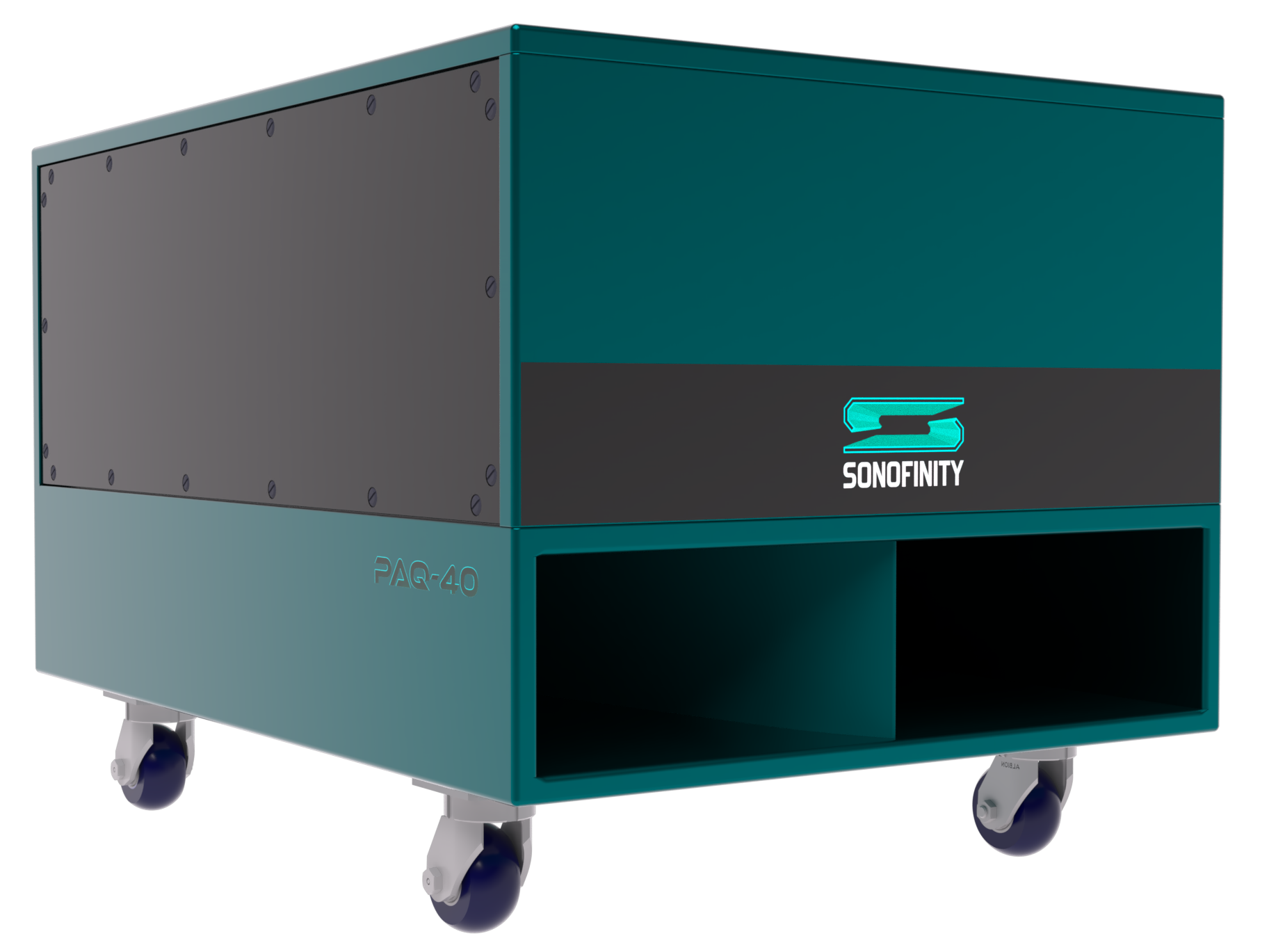

PAQ-40

• 24Hz—80Hz ±3dB

• 5th-order bandpass utilizing a quarterwave transmission line

• Dual 10″ drivers; quad 12″ passive radiators

• 9,000 Watt  SONOFINITY A-9  rack amplifier

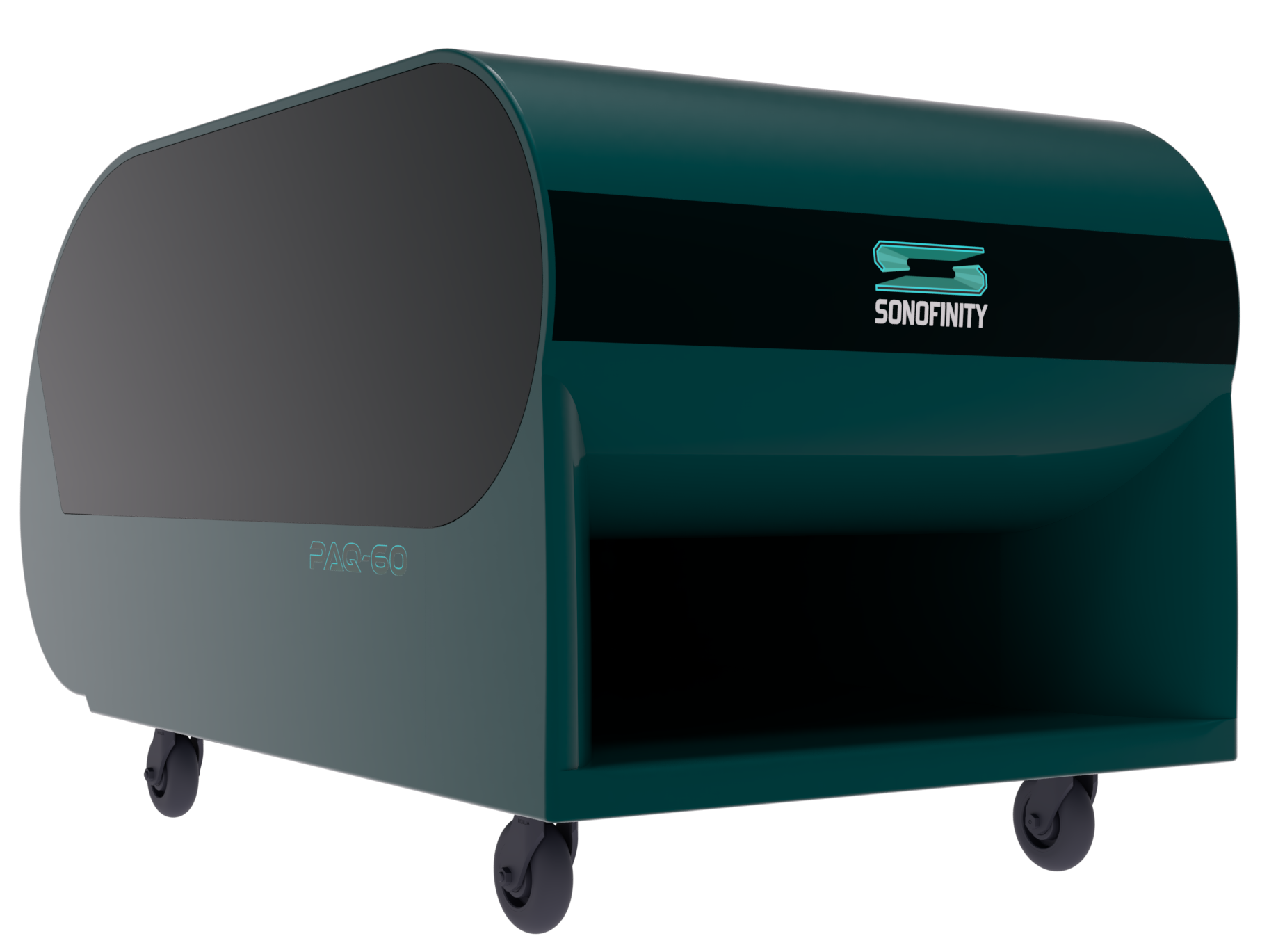

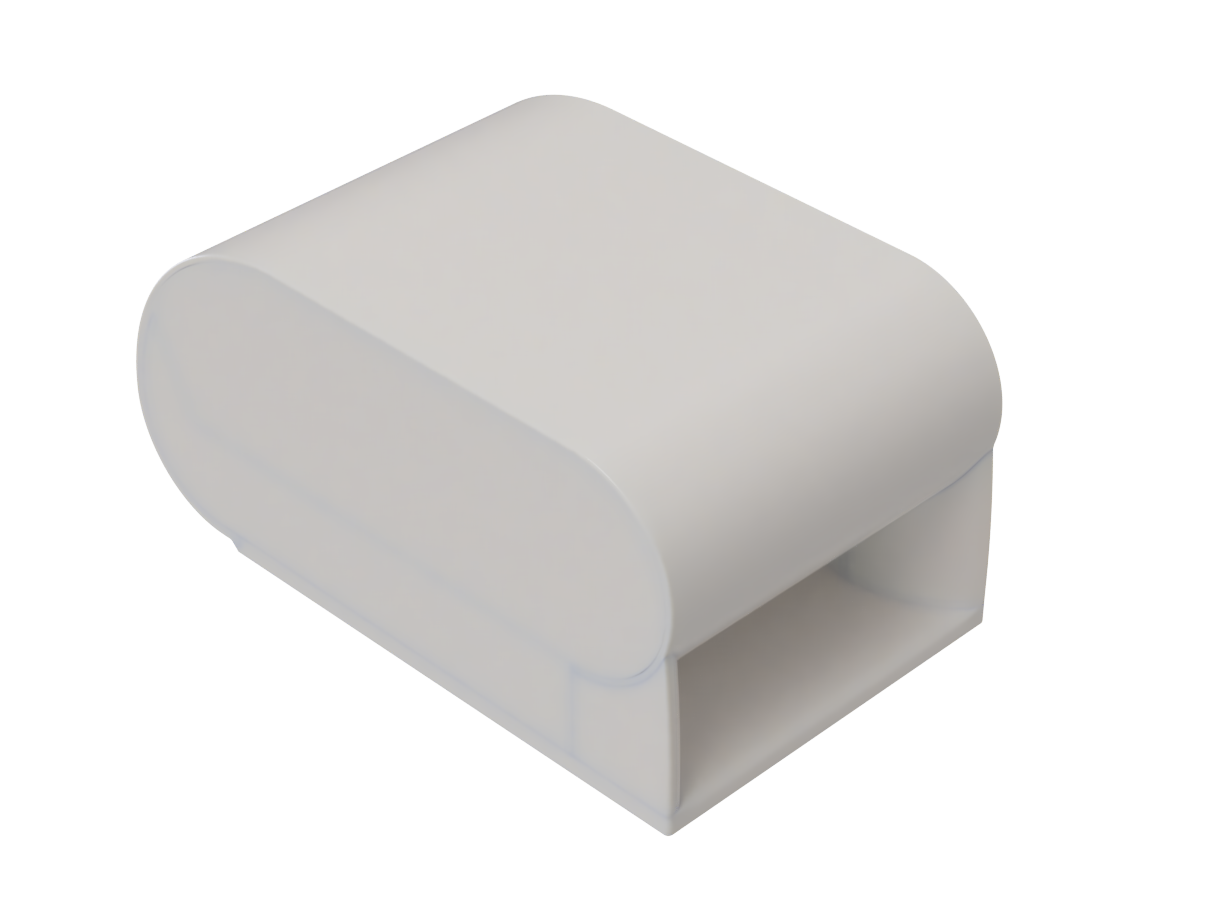

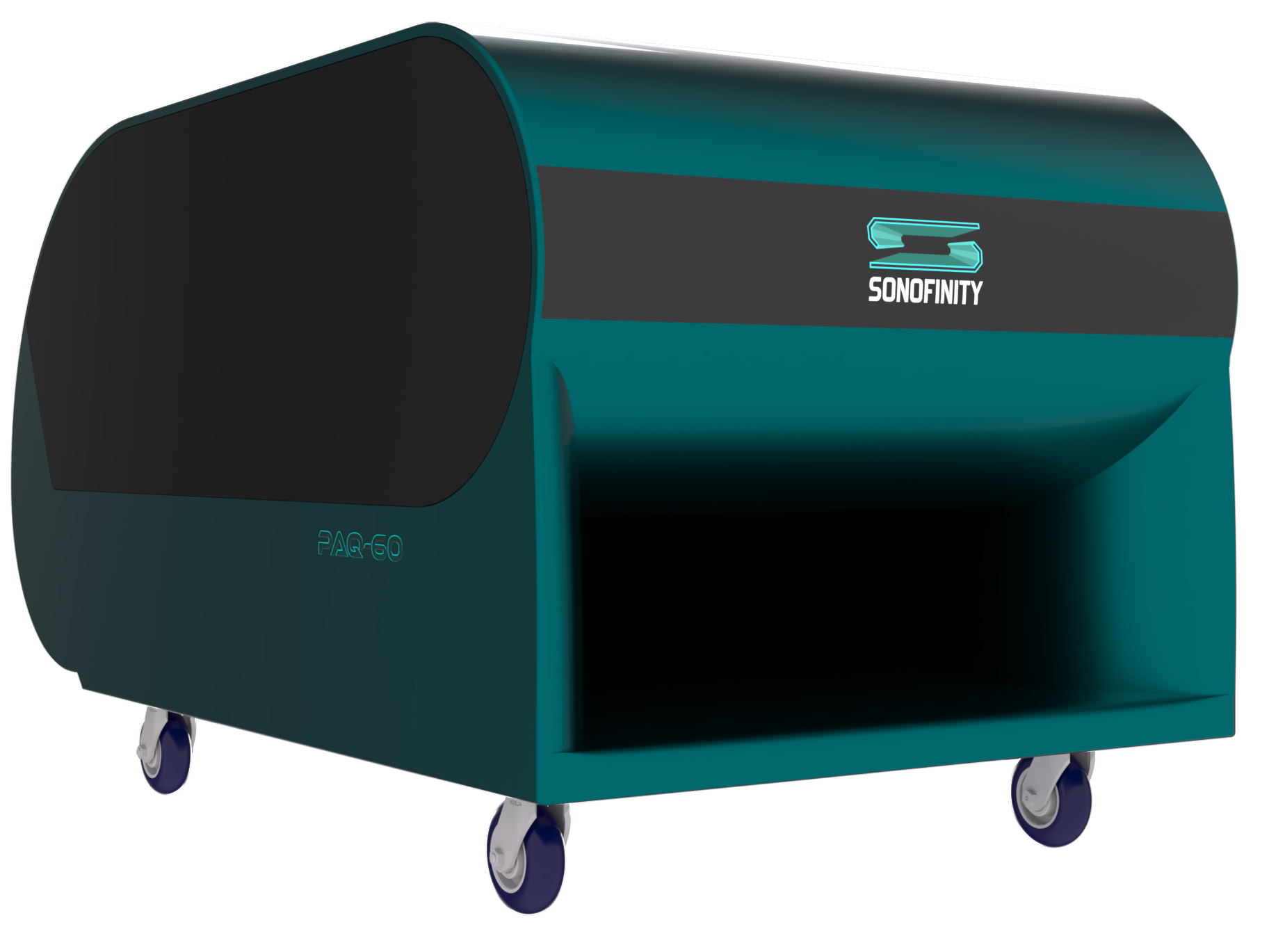

PAQ-60

• 20Hz—70Hz ±3dB

• 5th-order bandpass utilizing a quarterwave transmission line

• Dual 15″ drivers; quad 18″ passive radiators

• 18,000 Watt  SONOFINITY A-18  amplifier

• Dedicated speaker cable (length to order)

The PAQ-60 and PAQ-60XL designs differ mainly in the lengths of their transmission lines and tuning frequencies of their passive radiators. Their drivers are capable of about twice the excursion and triple the power handling of leading pro-audio drivers. The drivers and passive radiators simultaneously approach their max linear excursions, with the passive radiators’ contributing nearly quadruple the air volume displacement of the drivers. The transmission line aligns and combines the wavefronts of the drivers and passive radiators, and increases output. The PAQ-60 exhibits flat response in its operating range, but is exceptionally adept at handling high boost at 20Hz.

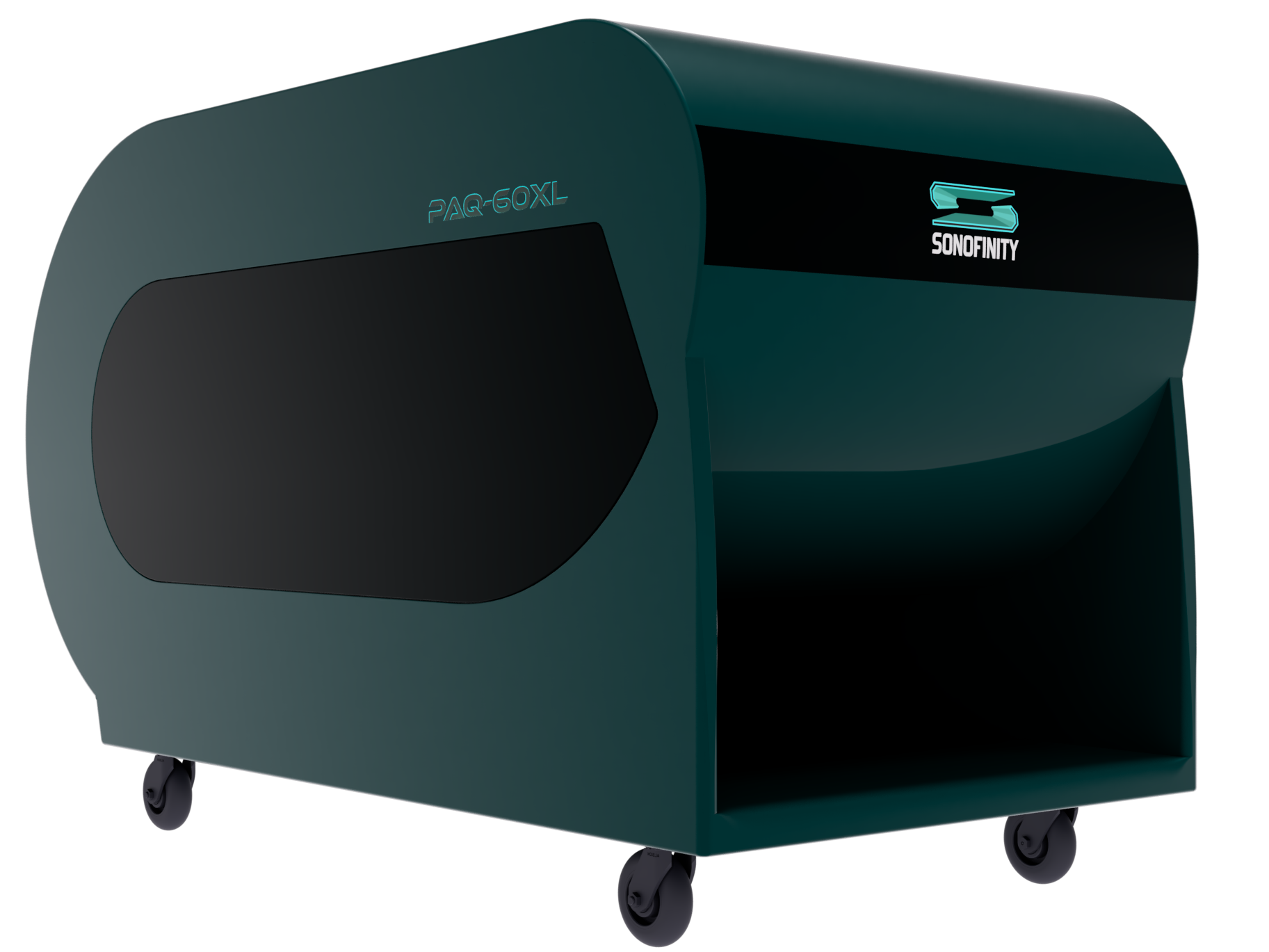

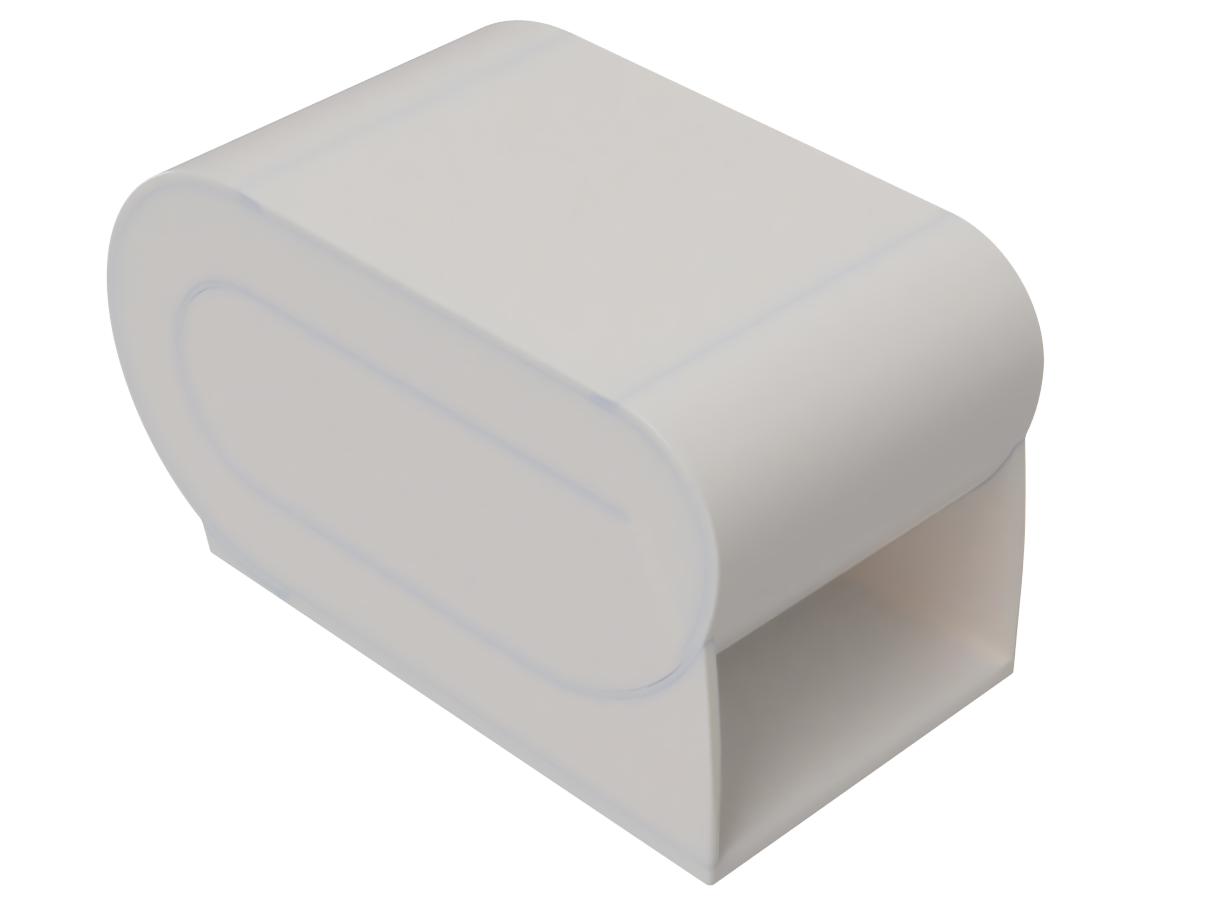

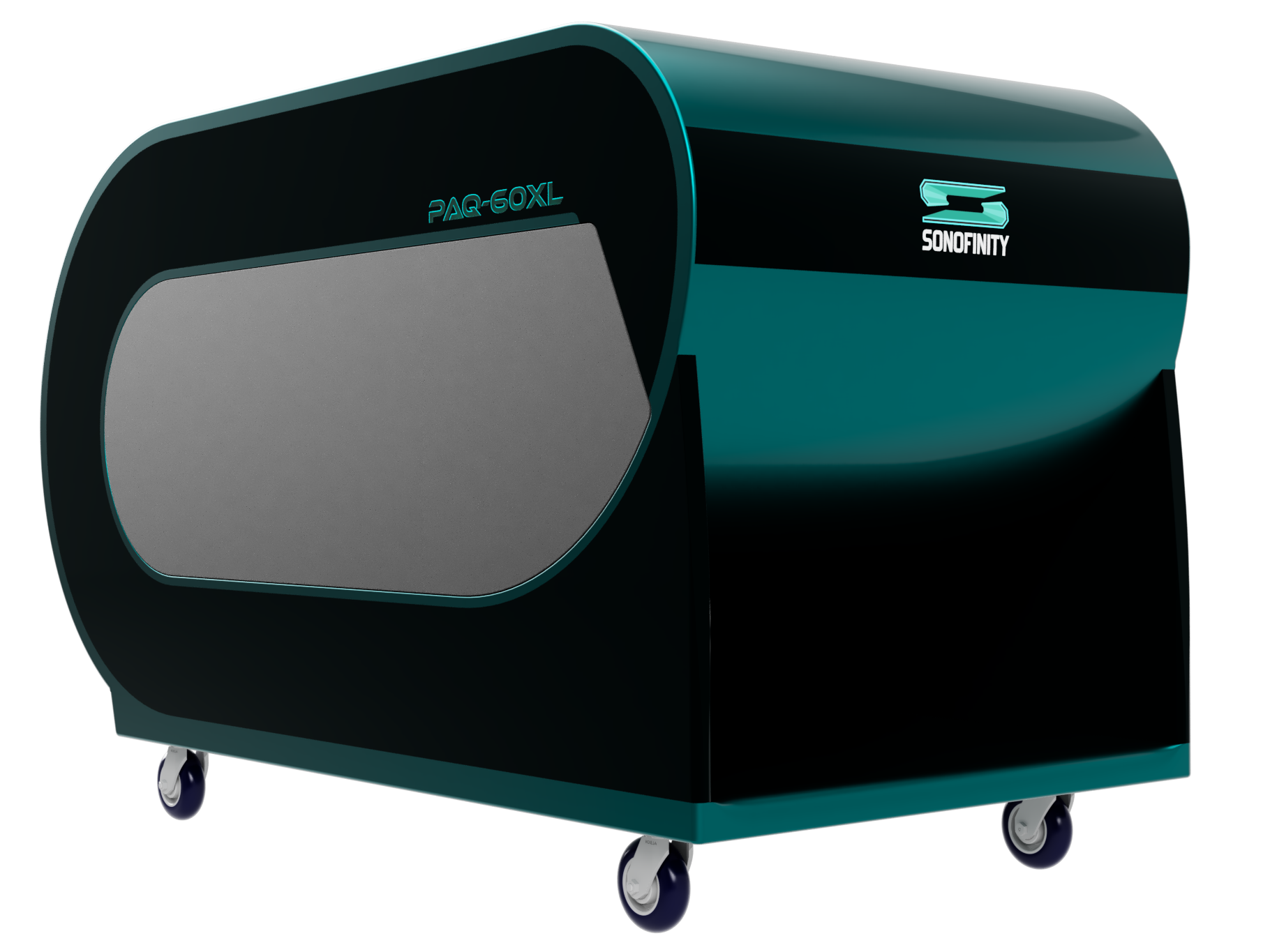

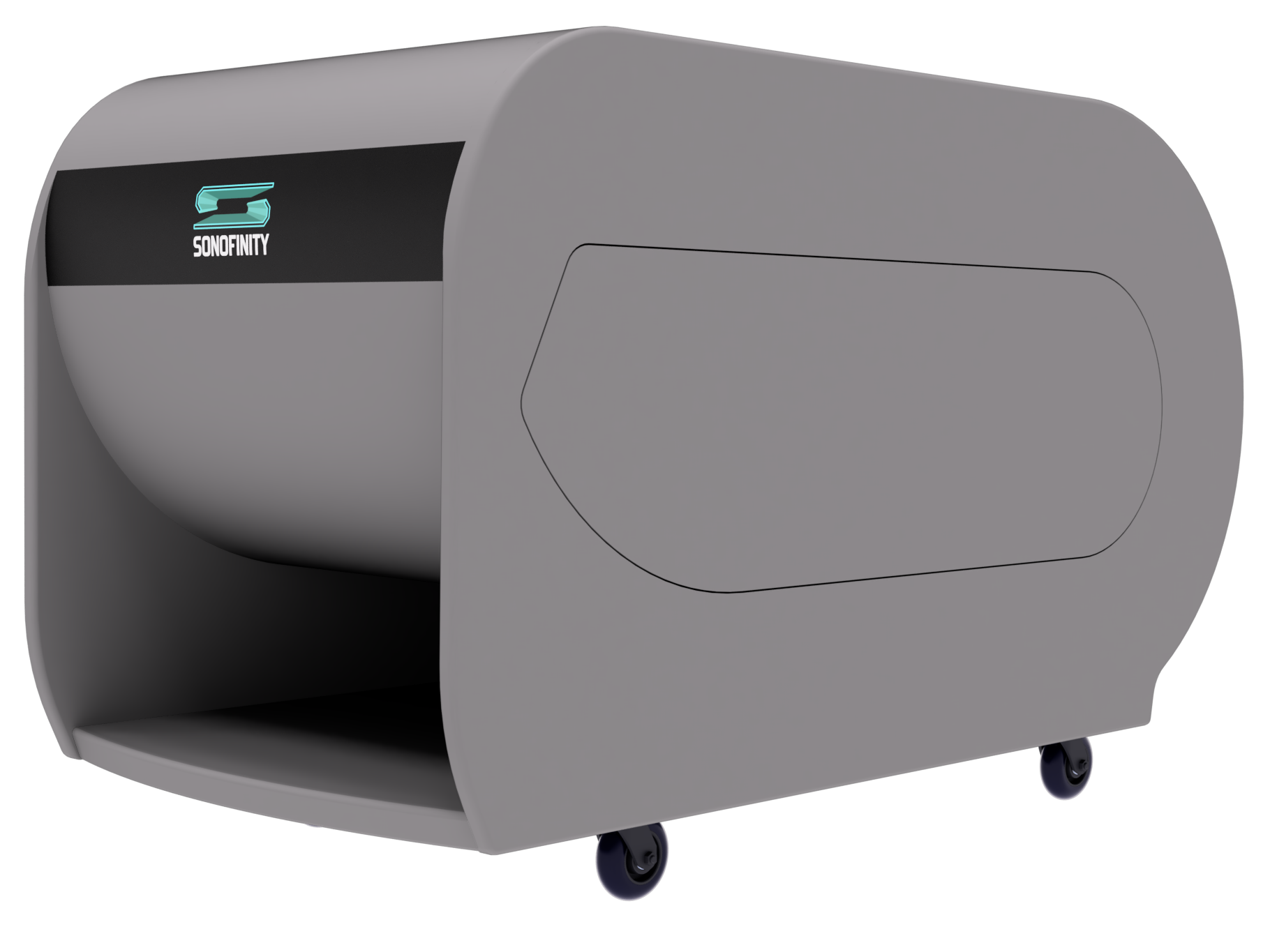

PAQ-60XL  INFRASUB

• Rising frequency response down to about 12.5Hz

• 5th-order bandpass utilizing a quarterwave transmission line

• Dual 15″ drivers; quad 18″ passive radiators

• 18,000 Watt  SONOFINITY A18  amplifier

• Dedicated speaker cable (length to order)

The PAQ-60 and PAQ-60XL designs differ mainly in the lengths of their transmission lines and tuning frequencies of their passive radiators.  Their drivers are capable of about twice the excursion and triple the power handling of leading pro-audio drivers. The drivers and passive radiators simultaneously approach their max linear excursions, with the passive radiators’ contributing nearly quadruple the air volume displacement of the drivers. The transmission line aligns and combines the wavefronts of the drivers and passive radiators, giving further acoustic leverage in producing meaningful infrasonics through the resonances of absolutely massive volumes of air!  The PAQ-60XL exhibits peak output around 12.5Hz

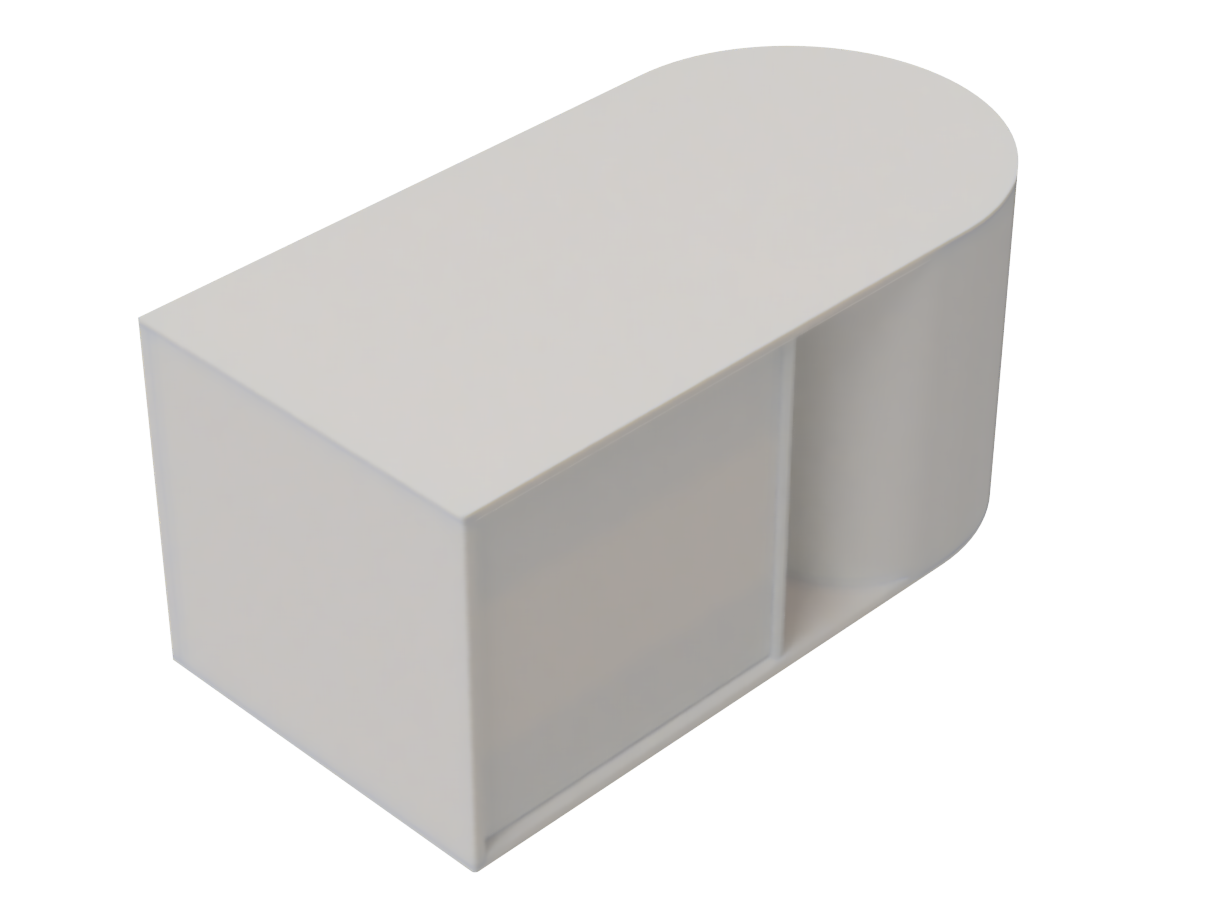

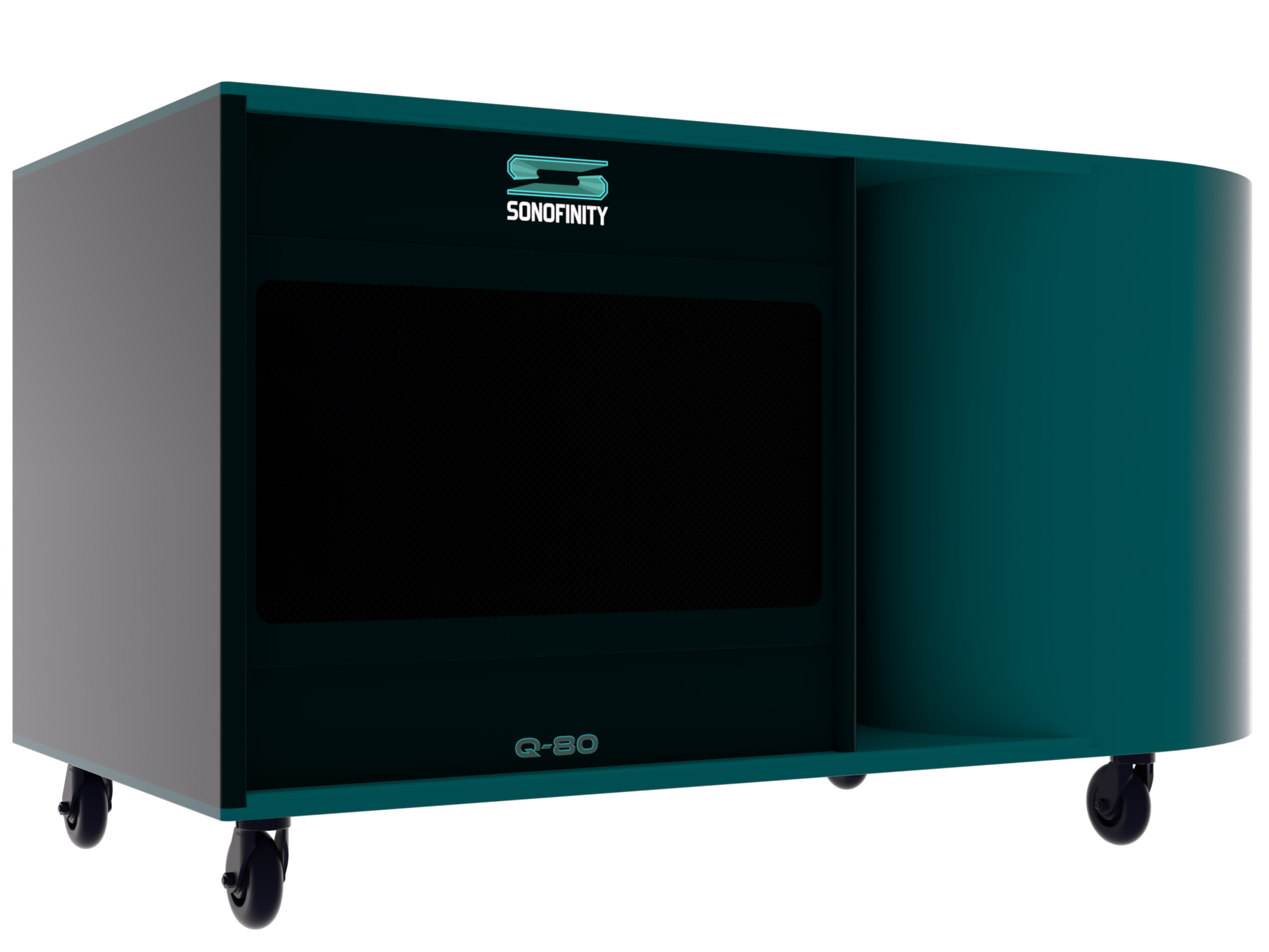

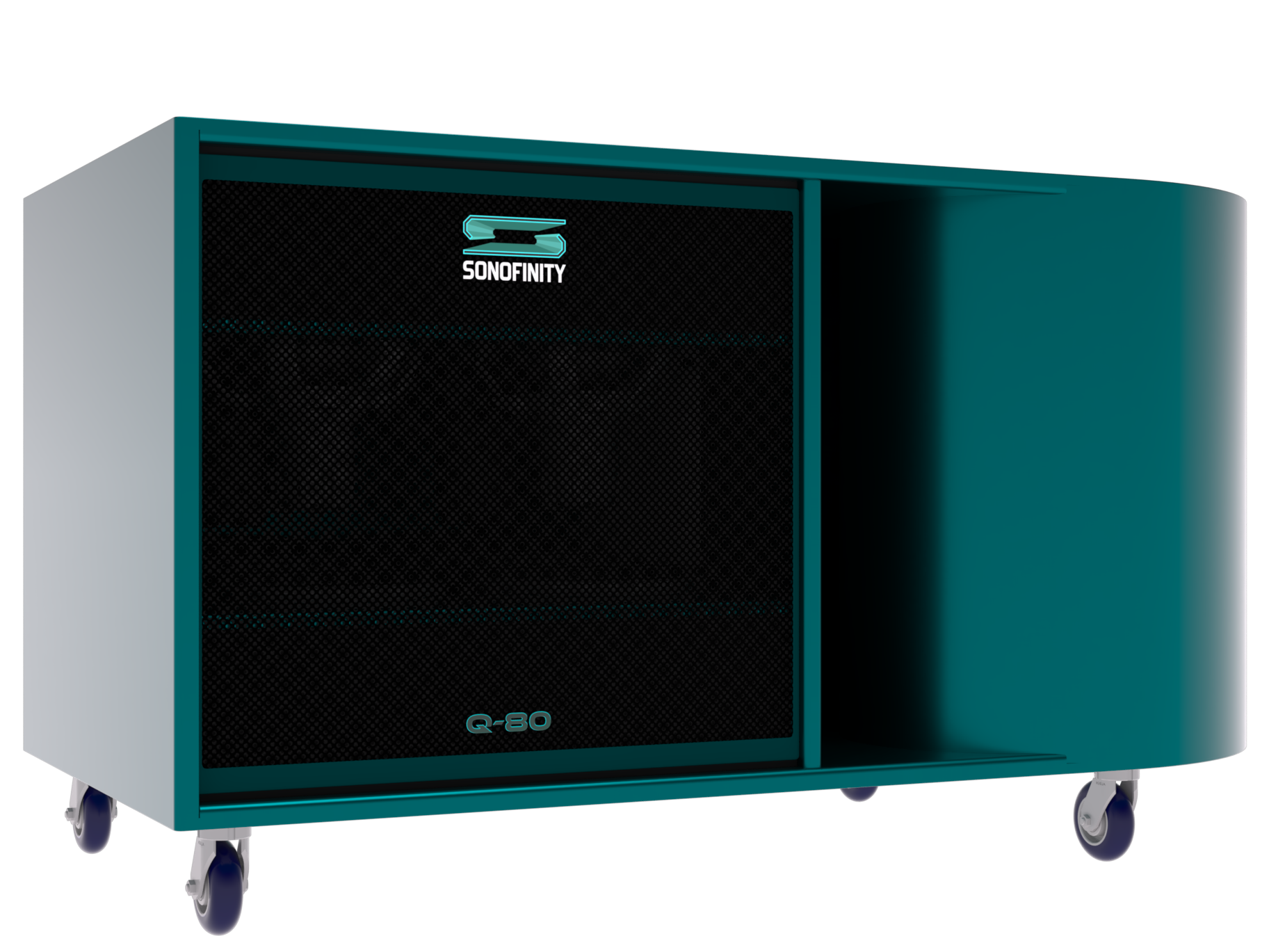

Q-80

• 15Hz—150Hz ±3dB

• Octo 18″ Push-Pull Clamshell

• Quarterwave transmission line

• 36,000 Watt  SONOFINITY A36  rack amplifier

• Dedicated speaker cable (length to order)
